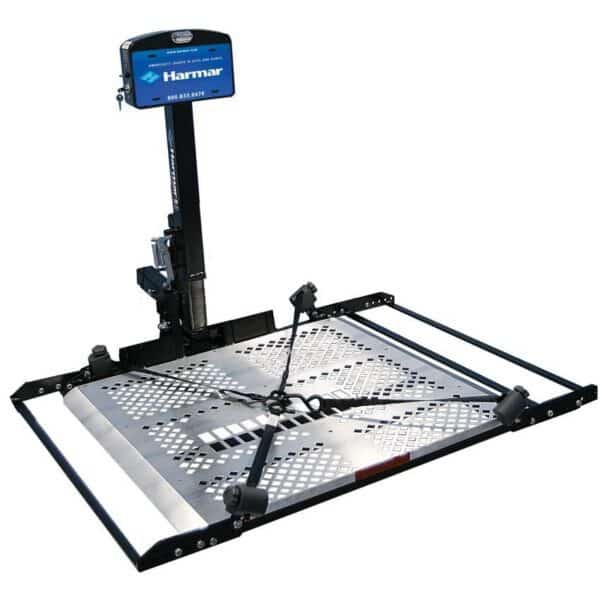

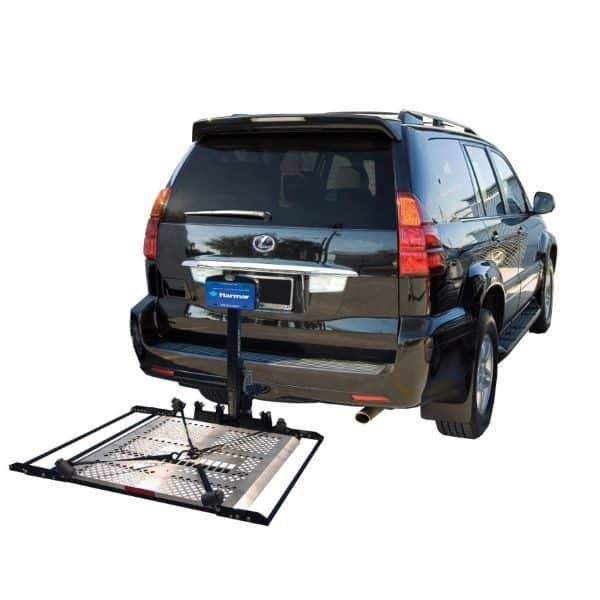

Harmar AL301XL Fusion Lift – Extra Large

Description

A Harmar exclusive, the unique design of the AL301XL Fusion lift make it the ideal solution to safely and securely transport today’s largest power chairs and scooters.

With its extra large deck and optional adjustable cradles, this lift is by far the biggest and most capable outside lift on the market.

Also available: AL301 XLHDFusion Lift with heavy-duty 400 lbs. capacity!

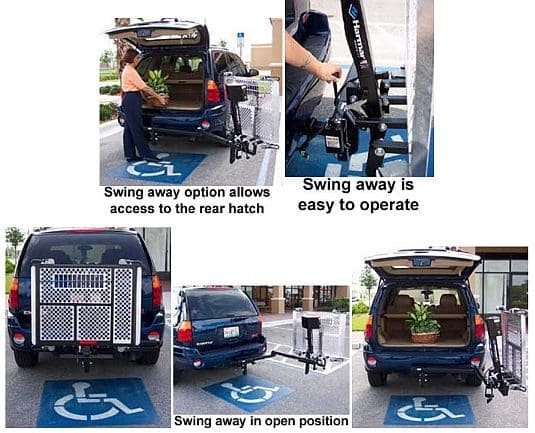

Optional Swing-Away:

The Swing-Away option allows an unoccupied outside lift to be easily pivoted away from the vehicle to gain clear access to the trunk, lift gate or tailgate. Always verify vehicle compatibility with a dealer.

Optional Battery Pack:

This is a light and effective power source for many of our most popular lifts.

The Battery Pack helps augment or supplement use of the vehicles battery, eliminating the need to hard wire your lift to the car’s battery. This handy Harmar accessory has a clean look, easy to read charging lights, and can be charged with your car’s cigarette lighter.

• Carries larger power scooters or power chairs with no modifications required.
• Self-tensioning, Q’Straint retractors/front and rear cradles
• Extra large 36” x 39” aluminum deck/adjustable cradles extend up to 53” (Optional, no charge item)
• Manual crank backup and license plate mount included
• Swing-Away option available
• Class III hitch adapter standard (AL123X); drop adapter upgrades available.
• Capacity: 350 lbs.
• Made in U.S.A.

Find out if this is the right lift for your application:

http://harmar.com/calc/allstarmedical

Specifications:

• Lifting capacity 350 lbs (160kg)
• Aluminum deck size 36″ X 39″
• Maximum scooter width 35.5″
• Maximum scooter wheelbase 48″
• Installed weight 100 lbs.
• Hitch height (range) 5”-18”
• Hitch Class III or greater
• Warranty 3-Year Transferable
