Description

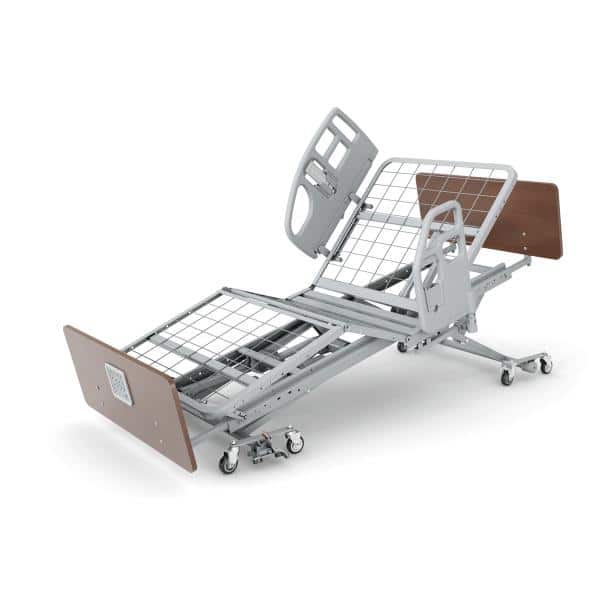

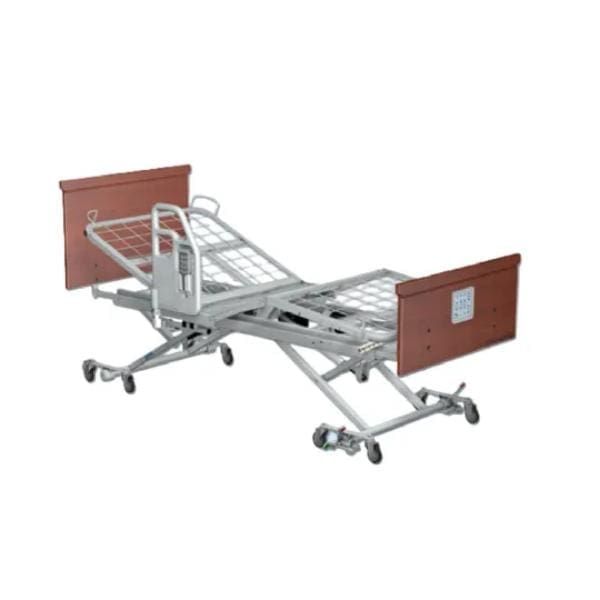

SPAN Advantage Elevate Bed – Adjustable, Ergonomic, and Designed for Safer Patient Care
The SPAN Advantage Elevate Bed is a top-tier choice for facilities and homecare providers focused on enhancing patient comfort and caregiver safety. Designed with smart ergonomics and medical-grade durability, this bed combines a low height profile, smooth vertical movement, and extensive customization options to meet a wide range of care needs.
Whether you’re outfitting a skilled nursing facility, hospital, or home environment, the Elevate bed provides the support, safety, and flexibility required for today’s advanced caregiving standards.
✅ Key Features & Benefits
🛏️ Superior Patient Comfort
-
Precision-welded orthopedic grid deck eliminates sagging for consistent, supportive sleep
-
Smooth, non-abrasive deck surface with no exposed welds—easy to clean and disinfect
-
Antimicrobial polyester powder-coated frame for long-lasting protection and hygiene
-
Vascular footrest with simple ratchet operation improves patient circulation and comfort
🚶 Enhanced Caregiver Safety & Efficiency
-
Vertical height adjustment (7.9″ to 30″) with no horizontal shift, reducing fall risk and saving space
-
Arched legs with wide stance for improved stability and obstacle clearance
-
Baseboard wall bumpers prevent room damage during adjustments
-
Standard hand pendant control for easy use by patients or caregivers
-
Optional foot-end controller with staff lockout function
🔧 Customization Options
-
3-Position Ergonomic Side Rails – Assists with ingress/egress and repositioning
-
Quick Width Expansion – Tool-less adjustability up to 42″ wide
-
4″ Length Extenders – Extend sleep surface to 84″
-
Pivot Assist Bars – Frame-mounted for safer transfer
-
Half Rails – Molded plastic, quick-release design
-
Transport Dollies – Makes moving and maintenance easier, even in tight spaces
📐 Specifications
Feature |
Details |
Height Range |
7-7/8″ – 30″ (200 – 762 mm) |
Backrest Angle |
0° – 70° |
Knee Elevation Angle |
0° – 30° |
Overall Bed Length |
84-3/4″ or 88-3/4″ |
Sleep Surface Length |
76″ or 80″ |
Sleep Surface Width |
35″ |
Bed Weight |
160 lbs (73 kg) |
Safe Working Load |
500 lbs (227 kg) |
🛡️ Warranty
🏥 Ideal For:
-
Hospitals & skilled nursing facilities
-
Rehabilitation centers
-
Homecare settings for long-term care
-
Fall-risk and bariatric patients (up to 500 lbs)
💰 Price & Value
The SPAN Advantage Elevate Bed offers premium clinical functionality at a competitive price point. With its modular customization and long-term durability, it delivers outstanding ROI for facilities and peace of mind for home caregivers.
Financing and delivery options available. Contact All Star Medical to schedule a consultation or request a quote.
📞 Call us at 615-258-7277 or visit our Franklin or Hermitage showroom for expert assistance.
