We sell and offer short term rentals on this item. Call 615-730-9438 for more detail. Features: Variable Position Height Range:Highest adjustability in the industry with each size having three height positions. 3-step adjusts from 23” to 34” (OSHA compliant at 25.5” and 34”) and 4-step adjusts from 27.5” to...
We sell and offer short term rentals on this item. Call 615-730-9438 for more detail.
Features:

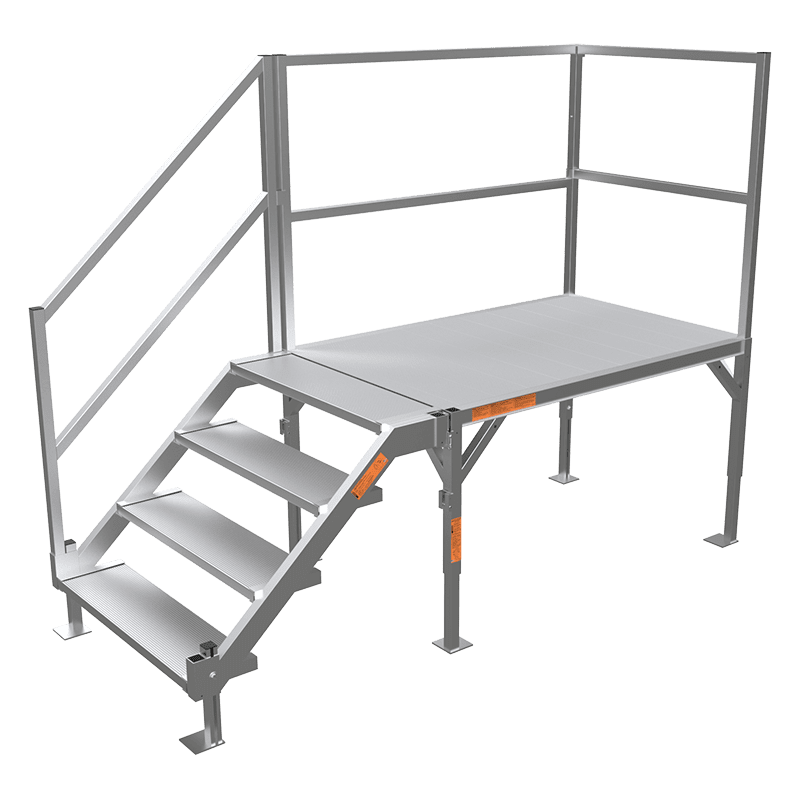

Variable Position Height Range: Highest adjustability in the industry with each size having three height positions. 3-step adjusts from 23” to 34” (OSHA compliant at 25.5” and 34”) and 4-step adjusts from 27.5” to 42.5” (OSHA compliant at 34” and 42.5”).
Stair System Components: Platform legs feature captured fasteners allowing for a wide range of adjustability. The one-step riser connection uses an OSHA safety pin to lock the riser to the platform. Also features hardware-free handrails that slide into the platform and lock securely in place with Valco snap buttons. Handrails are universal for left or right installation and fold flat for easy transport and storage. System ships with one riser handrail and one platform handrail.
Safety and Durability: OSHA compliant and exceeds NIOSH lifting recommendations. Each major component weighs less than 50 lbs. allowing for safe, one-person installation. Welded construction and 6000 series alloy aluminum. Extruded tread for maximum slip-resistance.
Stair System Adjustability and Use: The platform and riser legs adjust independently allowing for easy, on site leveling. The design also allows the stair system to be easily expanded, reconfigured, or moved.
Made in the USA and carries a three-year warranty.
Specifications:
FOR2334
FOR2742
Number of Risers
3
4
Height adjustment
23”, 25½”, & 34”
27½”, 34”, & 42½”
OSHA-compliant heights
25½” & 34”
34” & 42½”
Riser weight with legs (lbs.)
29
34
Riser handrail weight (lbs.)
7.8
9
Platform weight with legs (lbs.)
47
47
Platform handrail weight (lbs.)
17
17
System net weight (lbs.)
101
107
Footprint (fully assembled) (W x L x H)
41″ x 89½” x 76 5/8”
41″ x 99″ x 76 5/8”
Platform size – overall (W x L x H)
40” x 60” x 23”
40” x 60” x 23 H
Platform size – useable (W x L)
36½” x 56½”
36½” x 56½”
Aluminum type
6000 series
6000 series
Rated load (do not exceed rated load)
100 lbs. sq. ft., 300 lbs. concentrated
100 lbs. sq. ft., 300 lbs. concentrated
Standard feet
4” x 4” sq.
4” x 4” sq.
Riser height
8½”
8½”
Riser tread depth
9½”
9½”
Riser tread width
36½”
36½”
Riser handrail height – measured from leading edge of step tread to gripping surface
36”
36”
Platform handrail height
42½”
42½”
Warranty
3 Years
3 Years
Riser type
Open
Open
Universal handrails
Left or right turn
Left or right turn
Options:
There are four options available for the FORTRESS OSHA Stair System

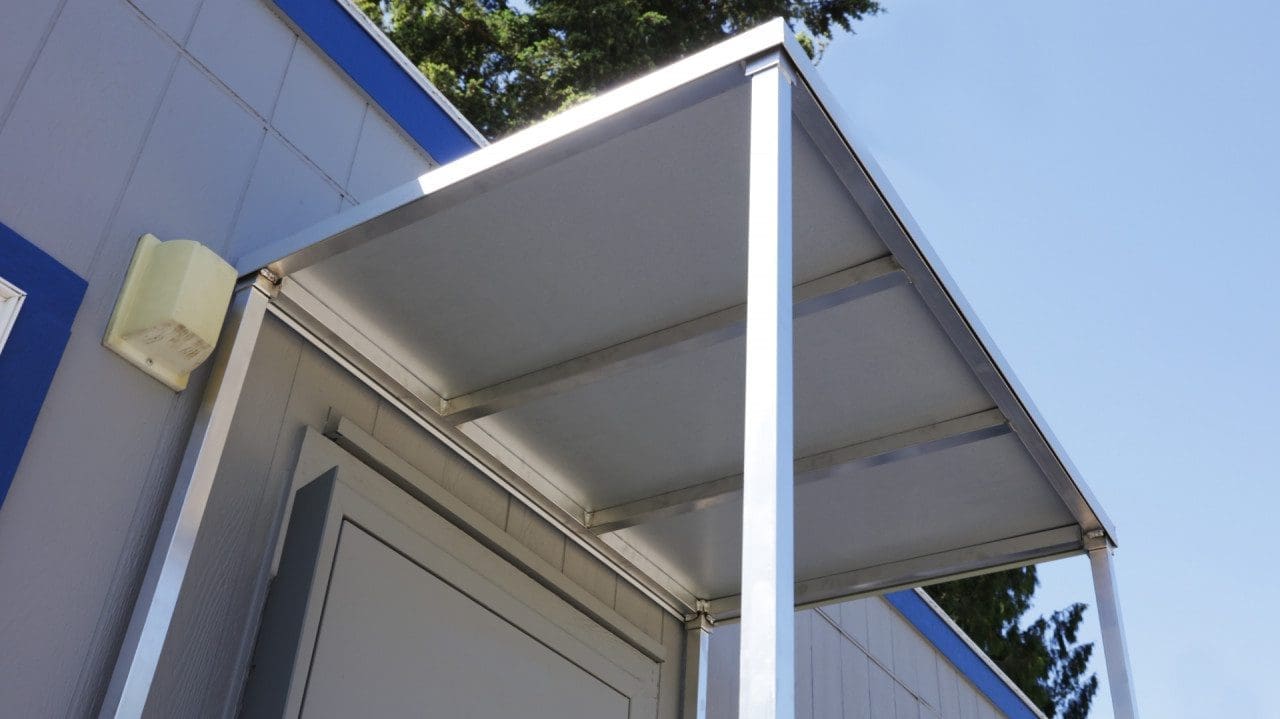

Canopy Easy-to-install 96” canopy for overhead protection from the elements. The rust-resistant Canopy features an aluminum frame with 22-gauge galvanized steel roof. Attaches directly to the FORTRESS Stair, which means no footings or building alterations are needed.
Construction: Features a sturdy, boxed-frame design for superior strength and durability and all fittings are made of high quality aluminum or galvanized steel. The four-post canopy has cross member supports for wind load resistance.
Simple Installation: One-person assembly in under 30 minutes.
Safety and Durability: Exceeds NIOSH lifting recommendations. Each major component weighs less than 50 lbs. allowing for safe, one-person installation.
Adjustability and Use: The rapid-swap design also allows the canopy to be easily moved as needed. Generous, 96″ measurement from walking surface to roof ensures plenty of door swing and light fixture clearance.
Oversized Feet May eliminate the need for pavers in most soil conditions.
Platform with Drain Holes Helps facilitate drainage with additional …” by ¾” holes in platform surface.
Secondary Handrails If handrails need to be installed on both sides, additional riser handrails and platform handrails are available.
