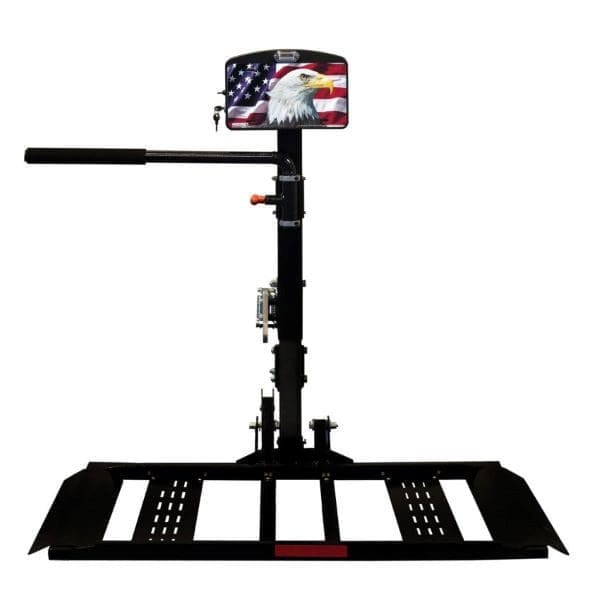

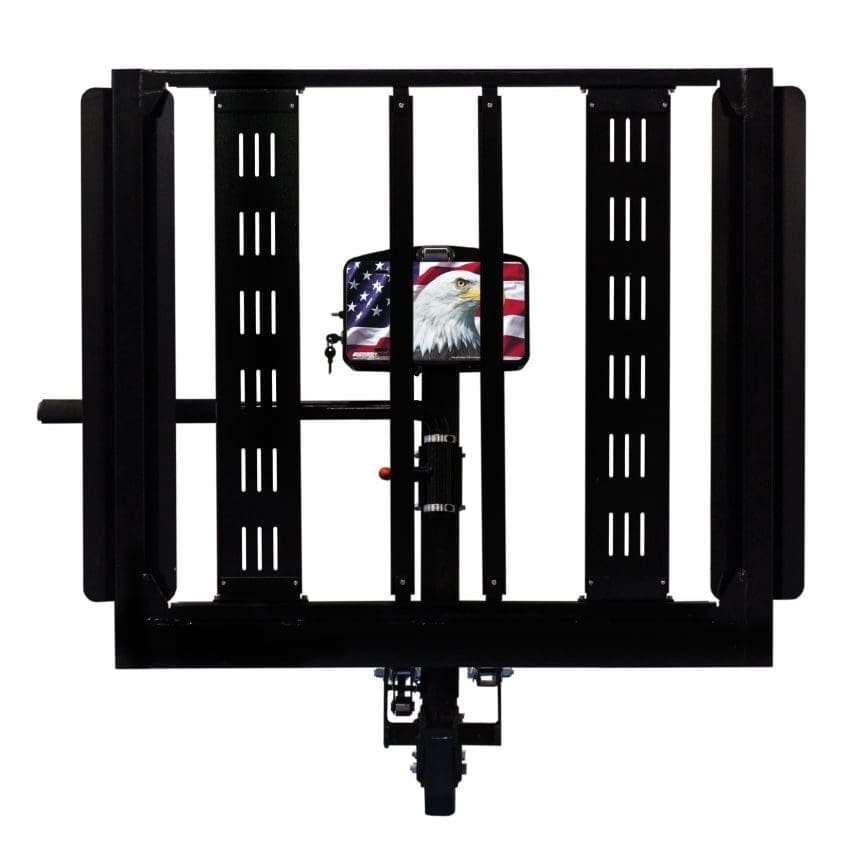

Harmar AL560XL Automatic Extra Large Power Chair Lift

Description

Harmar’s AL560XL is designed to meet the needs of consumers with larger power chairs who need a quick, automatic securing option without modifications to their power chair.

The extra-wide adjustable platform and vertically adjustable, padded hold-down arm safely and automatically secures larger power chairs up to 350 lbs (160kg). When empty, the platform automatically folds up and out of the way. One-switch operation and drive on/off platform make this fully automatic, American-made lift even easier to use.

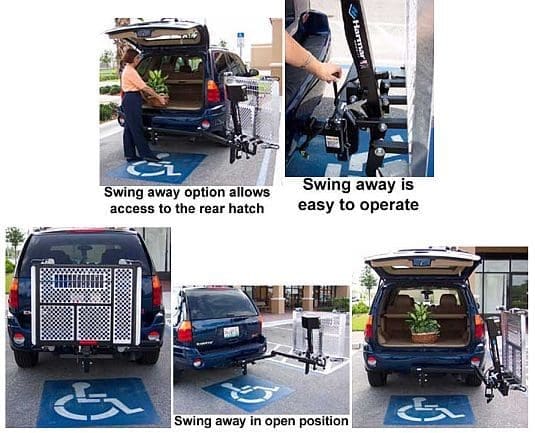

Optional Swing-Away:

The Swing-Away option allows an unoccupied outside lift to be easily pivoted away from the vehicle to gain clear access to the trunk, lift gate or tailgate. Always verify vehicle compatibility with a dealer.

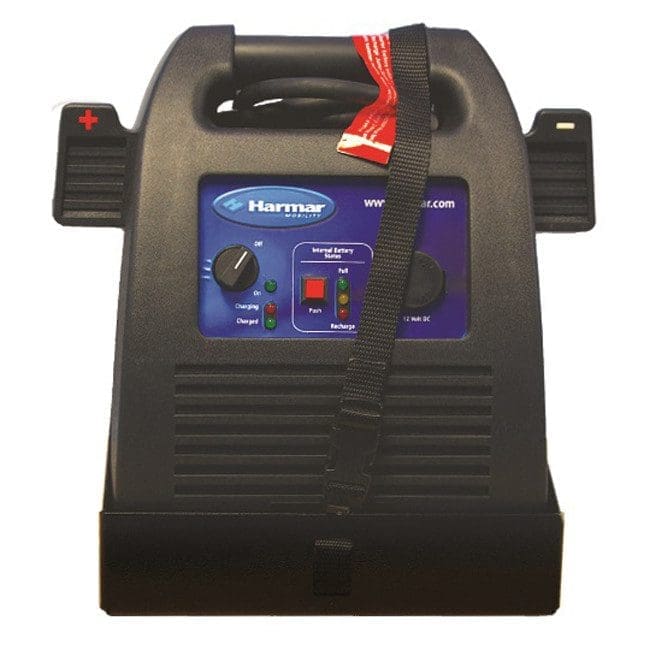

Optional Battery Pack:

This is a light and effective power source for many of our most popular lifts.

The Battery Pack helps augment or supplement use of the vehicles battery, eliminating the need to hard wire your lift to the car’s battery. This handy Harmar accessory has a clean look, easy to read charging lights, and can be charged with your car’s cigarette lighter.

• Carries many of the most popular larger power chairs
• Padded hold-down arm conveniently secures power chair
• No power chair modifications required
• 32.5” x 38.5” adjustable platform
• Platform wheel cradles adjust to provide a snug, custom fit
• Manual crank back-up and license plate mount included
• Swing-Away option available
• Made in the USA

Find out if this is the right lift for your application:

http://harmar.com/calc/allstarmedical

Specifications:

• Lifting capacity 350 lbs (160kg)
• Platform Size (Useable Space) 32.5″ X 38.5″, adjustable
• Installed weight 101 lbs.
• Hitch height (range) 5”-18”
• Hitch Class III or greater
• Warranty 3-Year Transferable
