Jazzy® Carbon 27X Ultra-Light Folding Power Wheelchair
Ultra-Light. Ultra-Strong. Built for Life on the Move.
The Jazzy® Carbon 27X is a revolutionary ultra-lightweight folding power wheelchair designed for travel, convenience, and everyday independence. Weighing just 27.5 lbs. without the battery, this power chair is constructed from advanced carbon fiber, delivering exceptional strength without unnecessary weight.

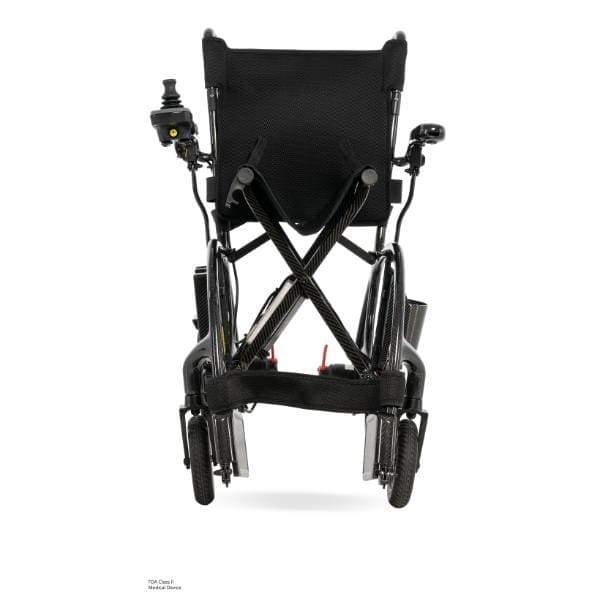

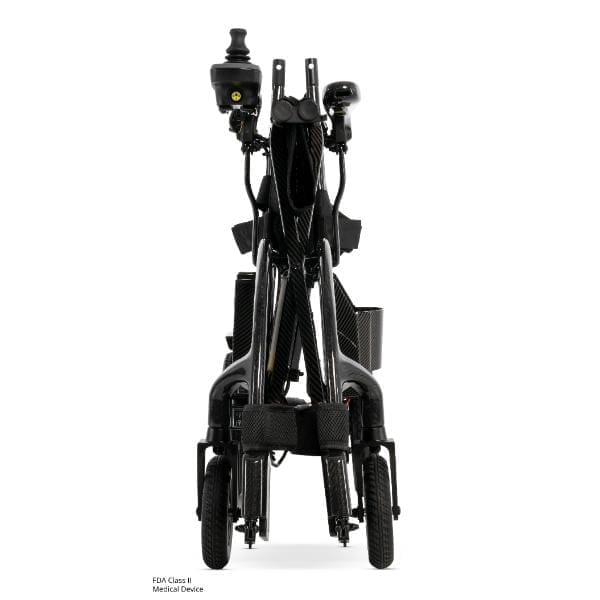

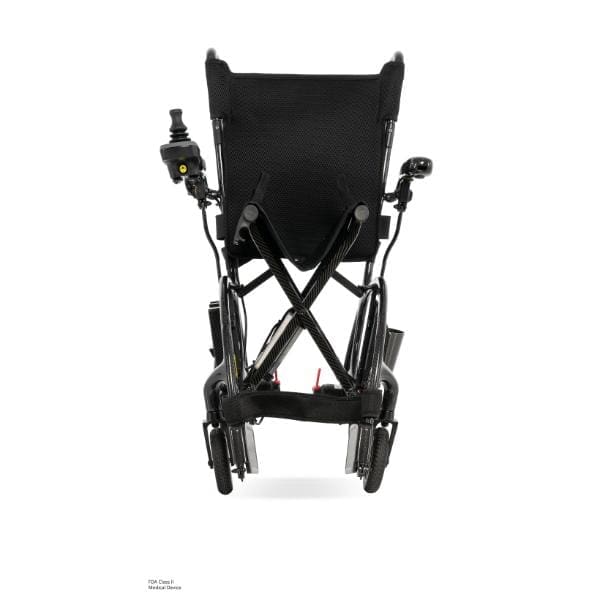

Thanks to its innovative X-Frame vertical folding design, the Jazzy Carbon 27X folds in seconds for effortless transport and compact storage—perfect for car trunks, travel, and daily outings.
Key Features & Benefits
-
Ultra-Lightweight Design – Weighs only 27.5 lbs. without battery, making it one of the lightest folding power wheelchairs available
-
Durable Carbon Fiber Frame – Strong, rigid, and built to last while remaining incredibly lightweight
-
Vertical X-Frame Folding System – Folds nearly flat in seconds for easy lifting and storage
-
Airline-Compliant Lithium Battery – 10Ah lithium battery approved for air travel*
-
Quick-Disconnect Programmable Joystick – Customizable controls with easy removal for transport
-
Comfort-Focused Seating – Includes removable cushion and adjustable lap belt (standard)
-
Travel-Ready Storage – Integrated seat-back storage pocket and carbon fiber cup holder
-
Adjustable Foot Rests – Personalized comfort for daily use
-
Flip-Up Carbon Fiber Armrests – Lightweight and convenient for transfers
-
Collapsible Handles – Simplifies maneuvering and storage when folded
*FDA Class II Medical Device
Jazzy® Carbon 27X Specifications
| Specification | Details |
|---|---|
| Part Number | Jazzy® Carbon 27X |
| Weight Capacity | 275 lbs. |
| Maximum Speed | Up to 3.7 mph |
| Ground Clearance | 3” |
| Turning Radius | 35.4” |
| Overall Length | 41” |
| Overall Width | 23” |
| Seat-to-Ground Height | 19.7” |
| Tires | Front: 7” • Rear: 10” |
| Range Per Charge | Up to 8 miles per charge |
| Product Weight | 27.5 lbs. (without batteries) |
| Frame Material | Carbon Fiber |
| Standard Seating | Cushioned back with removable seat cushion |
| Folded Dimensions | 34” L x 12” W x 30” H |
| Motor Output | 24V 150W |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | 24V 10Ah lithium (airline compliant*) |
| Battery Weight | 3.5 lbs |
| Battery Charger | 3.5A |
| FDA Classification | Class II Medical Device |
Warranty Information
-
Frame: 5-year limited warranty
-
Electronics: 13-month limited warranty
-
Drivetrain: 13-month limited warranty
-
Battery: 13-month limited warranty
